Coin Selector 06CS

Features

Allows the entrance and selection of the coins.
Suitable for any machine.
High Quality
Product Name Coin Selector 06CS
Product Code KM3-11
Weight About 21 kg (36 pcs)

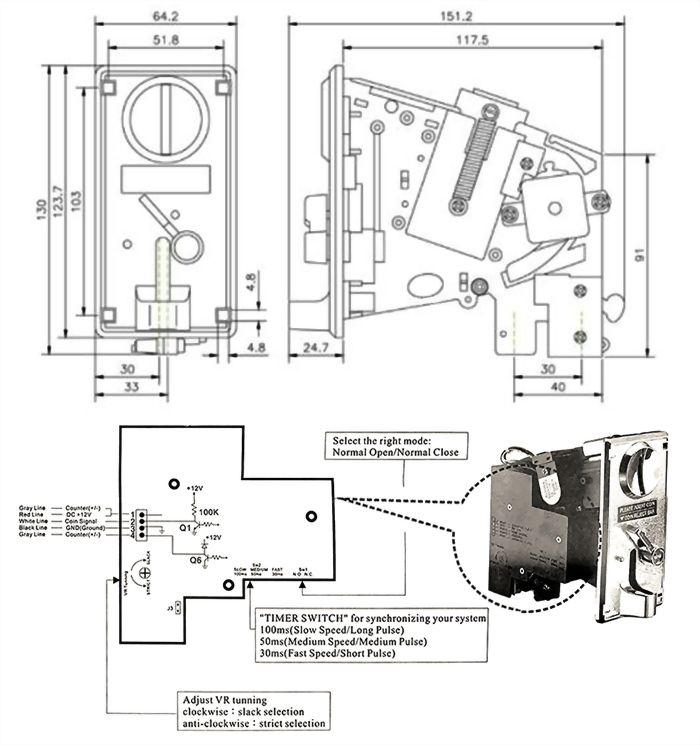

Dimension Please refer to information shown on "Specifications"
Voltage DC 12 V +/- 20%
Currents 200 mA
Coin Size Diameter 18~31 mm / Thickness 1.2~3 mm
Function Coin Entry and select coin
Features
  1. You can put right coin you use in the clamp
  2. Two kinds of mode: Normal Open (N.O) and Normal Close (N.C)
  3. Three kinds of mode for speed: 100 / 50 /30 ms
  4. It is suitable to any size and material of coin
  5. It can connect with counter
